Tungsten carbide insert

Carbide insert:CNMG120408
Usage:External/Internal turning tool
Hardness:≥HRA91.5
Workpiece:Steel,Stainless steel,Cast iron,Non-Ferrous material

EMAIL

Carbide insert: CNMG120408

Usage:External/Internal turning tool

Hardness:≥HRA89

◎ Wide application range: suitable for any working environment.

◎ High cost performance: economical and value for money.

◎ Selected materials: wear resistance and high strength resistance.

◎ Precision machining: the process is qualified before leaving the factory.

Workpiece:

Steel, stainless steel, cast iron, non-ferrous metal, etc.

Advantages:

Factory direct, various types available, competitive price.

Packaging Details:

Inner package: plastic box for inserts,1 box with 10pcs;Plastic foam to avoid shaking on shipping.

Outer package: carton box

Port:Shenzhen,Shanghai

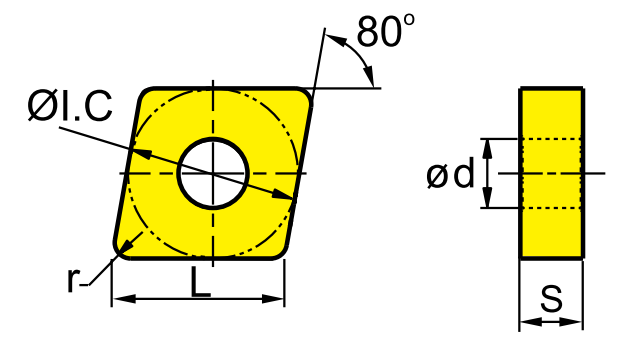

ISO L ØI.C S Ød r
CNMG
120404 12.9 12.7 4.76 5.16 0.4
120408 12.9 12.7 4.76 5.16 0.8
120412 12.9 12.7 4.76 5.16 1.2
190608 19.3 19.05 6.35 7.94 0.8

Grade ISO Density(g/cm3) Bending strength(N/mm2) Hardness Application
BL7228 P20 13.9-14.1 ≥1500 ≥91.5 The toughness substrate material is of good cutting edge safety which is excellently combined with MT-TiCN,thick Al2O3,and TiN coating.It is mainly a general grade for steel processing,and applys to semi-finishing and finishing of steel,cast iron and stainless steel.

Commonly used models: CNMG, DNMX, SNMG, DNMM, SNMM, TNMM, VNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, WNMG, RNMG etc.

Our service:

1.Free samples are available.

2.We can  produce products according to your drawings.

3.We can provide professional suggestions on products.

4.We can accept payment terms such as T/T ,Western Union , Paypal and etc.

5.We are a professional team and wait for you at any time.
