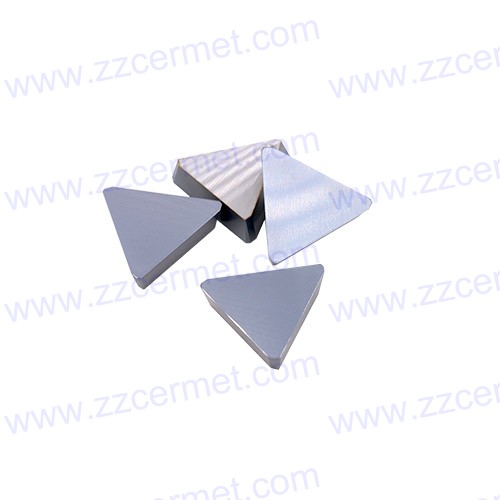

Cermet Milling Inserts TPKN

Model Number:TPKN2204PDTR
Hardness:91.5HRA
Certification: ISO 9001:2008
Usage: Cermet Milling Inserts

TYPE
Cermet Milling Inserts -TPKN2204PDTR;
Cermet Milling Inserts -TPKN2204PDTR;
Cermet Milling Inserts -TPKN2204PDTRL
Cermet Milling Inserts-TPKN1603PDTRL;
QUICK DETAILS
Place of Origin:Hunan, China (Mainland) Brand Name:Bullo Model Number:TPKN2204PDTR;
TPKN1603PDTR; TPKN2204PDTRL; TPKN1603PDTRL;
Material:Titanium carbonitride Usage:Cermet Milling Inserts
Hardness:HRA91-91.5 Grade: ZZX;ZZB
MOQ:100PCS Package:plastic box Certification:ISO 9001:2008
SUPPLY ABILITY
Supply ability:1000000 PCS/Year
PACKAGING&DELIVERY
Packaging Details:10pcs/PVC box Port：Zhuzhou City,Hunan Province
Lead Time:20-25 days after order confirmed
MAIN FEATURES AND ADVANTAGES
Professional manufacturer over 6 years experience.
With ISO9001: 2008 certification
Made by 100% raw material
Good quality with reasonable price
We have thousands of products in storage in different grades and type. Everything you expect is available.
Various delivery choice (DHL/ Fedex/ UPS/TNT/EMS), fast and safe
Flexible payment available: T/T, Paypal, Moneygram, western union,L/C.
GRADES AND SPECIFICATION
TiCN based cermet, improved chemical stability and wear-resistant, Using with sharp cutting edge and chip-breaker, can get good surface no matter under high speed or low speed,suitable for steel, stainless steel and cast iron finishing.

Grade	ISO	Density(g/cm³)	Haraness(HRA)	TRS(N/mm²)	Referenced Grade	Application
ZZC	P05-P20	6.6-6.8	92.5	≥1600	TN60,NS530,CT3000	Suitable for turning,be able to do finishing&semi-finishing for bearing,carbon steel,low alloy steel.
ZZX	P10-P30	6.8-7.1	92.5	≥2000	NX2525,NS740	Suitable for milling machining,excellent wear resistance,be able to do finishing&semi-finishing for hardness material.
ZZB	P10-P40	6.9-7.2	91	≥2800		Mainly suitable for the production of bar,mold materials,semi-finishing milling tools.
ZZM		6.4-6.6	90	≥2400		Suitable for corrosion-resistant mold material and high impact performance requirements of wear-resistant parts.
ZZN		6.0-6.2	93	≥1500		Suitable for corrosion-resistant wear-resistant parts.

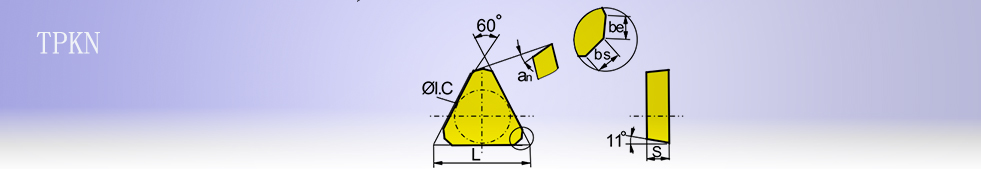

Type	Basic Specification					Grade
Type	L	ΦI.C	S	bs	be	ZZC	ZRX	ZRB
TPKN2204PDTR	22	12.7	4.76	0.7	1.4	◐	△	□
TPKN1603PDTR	16	9.525	3.18	0.7	1.4	◐	△	□
TPKN2204PDTRL	22	12.7	4.76	0.7	1.4	◐	△	□
TPKN1603PDTRL	16	9.525	3.18	0.7	1.4	◐	△	□
