Type:2 flutes ball nose end mill
Material:Tungsten carbide
Hardness:HRC≤55°
Coating:TiAlCrN

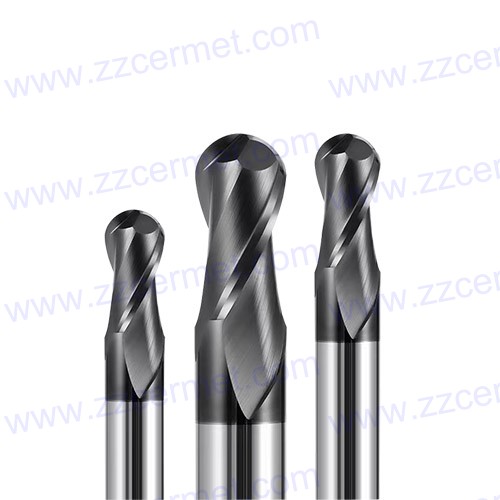

2 Flutes ball nose end mills for cutting all kinds of materials
Flutes No. | 2/4 Flutes |
Material | Tungsten carbide |
Coating | TiAlCrN |
Helix Angle | 35° |
Hardness | HRC55° |
Customized | Accept |
Smooth Finish | Highly polished |
Feature | Excellent chip evacuation |
Measurement | Metric |
Incorporate latest molding, coating, edge preparation,and other manufacturing technology. Provide superior performance.
Coatings provide high-speed capability and are engineered from finishing to heavy roughing,The post-coat treatment reduces coating stresses, improves coating adhesion, minimises microchipping and edge build-up, and improves workpiece finish.Coated surface enable to get Longer tools life.
Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
Served industries: Aerospace,Transportation,Medical Equipment,Military Manufacturing,Mold Development,etc.
Item No.: | Edge diameter | Edge length | Overall length | Shank diameter |
B2F**R0.5*50S4 | 1 | 2 | 50 | 4 |
B2F*R0.75*4*50S4 |
1.5 | 3 | 50 | 4 |
B2F*R1*50S4 |
2 | 4 | 50 | 4 |
B2F*R1.25*50S4 | 2.5 | 5 | 50 | 4 |
B2F*R1.5*50S4 | 3 | 6 | 50 | 4 |
B2F*R1.75*50S4 |
3.5 | 7 | 50 | 4 |
B2F*R2*50S4 |
4 | 8 | 50 | 4 |
B2F*R2.5*50S6 |
5 | 10 | 50 | 6 |
B2F*R3*50 | 6 | 12 | 50 | 6 |
B2F*R3.5*60S7 | 7 | 14 | 60 | 7 |
B2F*R4*60 | 8 | 16 | 60 | 8 |
B2F*R4.5*75S9 | 9 | 18 | 75 | 9 |
B2F*R5*75 | 10 | 20 | 75 | 10 |
B2F*R5.5*75S11 | 11 | 22 | 75 | 11 |
B2F*R6*75 | 12 | 24 | 75 | 12 |
B2F*R7*80 | 14 | 28 | 80 | 14 |
B2F*R8*100 | 16 | 32 | 100 | 16 |
B2F*R9*100 | 18 | 36 | 100 | 18 |
B2F*R10*100 | 20 | 40 | 100 | 20 |
♣Quick Response:Your inquiry will be replied within 24 hours.
♣High Quality:Well-trained workers and more than 10 years experience.
♣Competitive Price:Directly from factory to save your money.
♣Short Lead Time:Being efficient:3-7 days for samples and 10-35 days for quantity orders.
♣Flexibility:Small orders are acceptable for quick delivery and to help you reduce stock cost.
♣OEM:Custom fabrication according to your drawings ,samples or designs.
