Tungsten carbide insert TPMR

Carbide insert:TPMR
Usage:External/Internal turning tool
Hardness:≥HRA90
Workpiece:Steel,Stainless steel,Cast iron,Non-Ferrous material

EMAIL

Carbide insert:TPMR

Usage:External/Internal turning tool

Hardness:≥HRA90

◎ Wide application range: suitable for any working environment.

◎ High cost performance: economical and value for money.

◎ Selected materials: wear resistance and high strength resistance.

◎ Precision machining: the process is qualified before leaving the factory.

Workpiece:

Steel, stainless steel, cast iron, non-ferrous metal, etc.

Advantages:

Factory direct, various types available, competitive price.

Packaging Details:

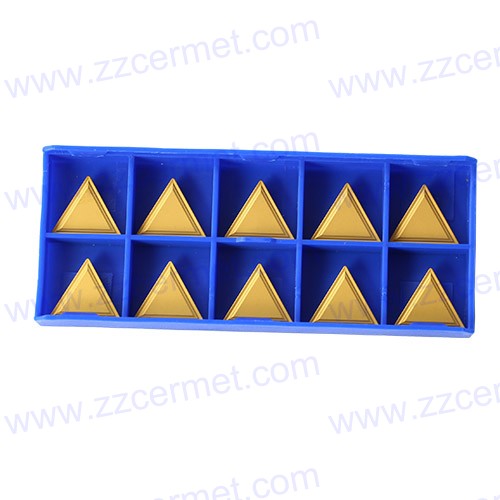

Inner package: plastic box for inserts,1 box with 10pcs;Plastic foam to avoid shaking on shipping.

Outer package: carton box

Port:Shenzhen,Shanghai

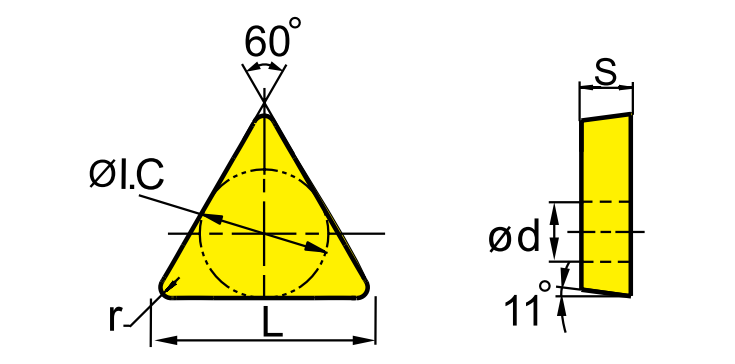

Type L ØI.C S Ød
r
TPMR 11 6.35 3.18
0.4
11 6.35 3.18
0.8
16.5 9.525 3.18
0.4
16.5 9.525 3.18
0.8
16.5 9.525 3.18
1.2
22 12.7 4.76
1.2

Grade ISO Density(g/cm3) Bending strength(N/mm2) Hardness Application
BL7226 P30 M30 13.7-14 ≥1650 ≥91 This substrate material is of high strength and plastic deformation resistance which combined with MT-TiCN,thick Al2O3,TiN coating;It has good toughness and resistance of plastic deformation.It applys to rough machining of steel and stainless steel
BL9125 K10 14.8-15.1 ≥1420 ≥91 This alloy is suitable for processing chilled ally cast iron and heat-resistant alloys,it can obtain good effectiveness.
BL7335
P25-P30 12.4-13 ≥1600 ≥91 It is used for Heavy-type milling of steel and cast steel,with high heat resistance and excellent toughness.
BL738

P10-30

M10-30

K10-30

12.7-13.5 ≥1180 90 It is the common grade which is suitable for difficult process steel,such as heat-resistant steel,high manganese steel,stainless steel and ordinary steel and cast iron.
BL725 P20-30 12.8-13.2 ≥1620
90.5 It is suitable for rough-turning of carton steel,cast steel,high manganese steel,high strength steel and alloy steel.

Commonly used models: CNMG, DNMX, SNMG, DNMM, SNMM, TNMM, VNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, WNMG, RNMG etc.

Our service:

1.Free samples are available.

2.We can  produce products according to your drawings.

3.We can provide professional suggestions on products.

4.We can accept payment terms such as T/T ,Western Union , Paypal and etc.

5.We are a professional team and wait for you at any time.
